I have choose the graph from Visual Capitalist, “Consumer Inflation from 2020 to 2025”. The dataset is from Deutsche Bank, record consumer inflation from 2020 to June 2025. This world map visualization includes elements of bubble map structure, texts and arrows, gradient scales that goes from thin to thick and the magnifying lenses on top of Europe and South East Asia.
This map is likely done by Adobe Illustrator due to its extreme precise placement of text, numbers and bubbles. Nonetheless, I will try to use ggplot2 and other graph related packages to replicate it.
Packages
library(readr)
library(ggplot2)
library(tidyverse)
library(sf) # map structure
library(scales) # making the scale
library(rnaturalearth) # map info
library(showtext) # fonts
library(systemfonts)
library(cowplot) # composite maps togetherData Cleaning
# import data
inflation2025 <- read_csv("global inflation 2025_Deutsche Bank - Sheet1.csv")
# clean data
cum_inflation_2025 <- inflation2025 |>
select(-`cum change since 2012 (%)`,
-`cum change since 2020 (%)`,
-`Rank based on change from 2012 Economy`) |>
mutate(Economy = case_when(Economy == "United States" ~ "United States of America",
Economy == "Czech Republic" ~ "Czechia",
TRUE ~ Economy))
# sf data object
world_map <- ne_countries(scale = "medium", returnclass = "sf") |>
filter(admin != "Antarctica")
world_inflation <- world_map |>
left_join(cum_inflation_2025, by = c("name" = "Economy")) |>
# change names that are shown/not shown on the map
mutate(name = case_when(name == "South Africa" ~ "S. Africa",
name == "Turkey" ~ "Türkiye",
name == "United Kingdom" ~ "UK",
name == "South Korea" ~ "S. Korea",
name == "United Arab Emirates" ~ "UAE",
name == "United States of America" ~ "U.S.",
name %in% c(
"Austria", "Netherlands", "Belgium",
"Luxembourg", "Portugal", "Singapore",
"Denmark", "Ireland") ~ "",
TRUE ~ name))Fonts
font_add_google("Poppins", "poppins")
font_add_google("Erica One", "erica")
showtext_auto()The Gradient Scale on Top of the Map
Since there is no faster way to create a scale bar that goes from thin to thick like the original graph, I decided to use a more robust method to create it from scratch.
# bar legend
vc_palette <- c("#53a6e8", "#6b9bd1", "#7B95C5","#8a8eb8", "#9B88AC","#ab809f", "#B87993","#c87284", "#D86C7B","#e56569", "#B0022A")
limit_range <- c(0, 55)
legend_data <- data.frame(x = seq(limit_range[1], limit_range[2], length.out = 500))
legend_data$y_height <- 0.2 + (legend_data$x / 50) * 2
legend_plot <- ggplot(legend_data) +
geom_segment(aes(x = x, xend = x, y = 0, yend = y_height, color = x), linewidth = 1) +
scale_color_gradientn(
colors = vc_palette,
limits = limit_range,
oob = scales::squish,
) +
annotate("text", x = 1, y = -1, label = "0%", size = 2.5, fontface = "bold", color = "#333333") +
annotate("text", x = 10, y = -1, label = "10%", size = 2.5, fontface = "bold", color = "#333333") +
annotate("text", x = 20, y = -1, label = "20%", size = 2.5, fontface = "bold", color = "#333333") +
annotate("text", x = 30, y = -1, label = "30%", size = 2.5, fontface = "bold", color = "#333333") +
annotate("text", x = 40, y = -1, label = "40%", size = 2.5, fontface = "bold", color = "#333333") +
annotate("text", x = 50, y = -1, label = "50%", size = 2.5, fontface = "bold", color = "#333333") +
annotate("segment", x = 0, xend = 0, y = 0, yend = -0.3, color = "#333333") +
annotate("segment", x = 5, xend = 5, y = 0, yend = -0.3, color = "#333333") +
annotate("segment", x = 10, xend = 10, y = 0, yend = -0.3, color = "#333333") +
annotate("segment", x = 15, xend = 15, y = 0, yend = -0.3, color = "#333333") +
annotate("segment", x = 20, xend = 20, y = 0, yend = -0.3, color = "#333333") +
annotate("segment", x = 25, xend = 25, y = 0, yend = -0.3, color = "#333333") +
annotate("segment", x = 30, xend = 30, y = 0, yend = -0.3, color = "#333333") +
annotate("segment", x = 35, xend = 35, y = 0, yend = -0.3, color = "#333333") +
annotate("segment", x = 40, xend = 40, y = 0, yend = -0.3, color = "#333333") +
annotate("segment", x = 45, xend = 45, y = 0, yend = -0.3, color = "#333333") +
annotate("segment", x = 50, xend = 50, y = 0, yend = -0.3, color = "#333333") +
ylim(-1, 4) +
xlim(10, 60) +
scale_y_continuous(expand = c(0, 0), limits = c(-5, 4)) +
scale_x_continuous(expand = c(0, 0)) +
theme_void() +
theme(legend.position = "none")
scale_grob <- ggplotGrob(legend_plot)Numbers on Bubbles

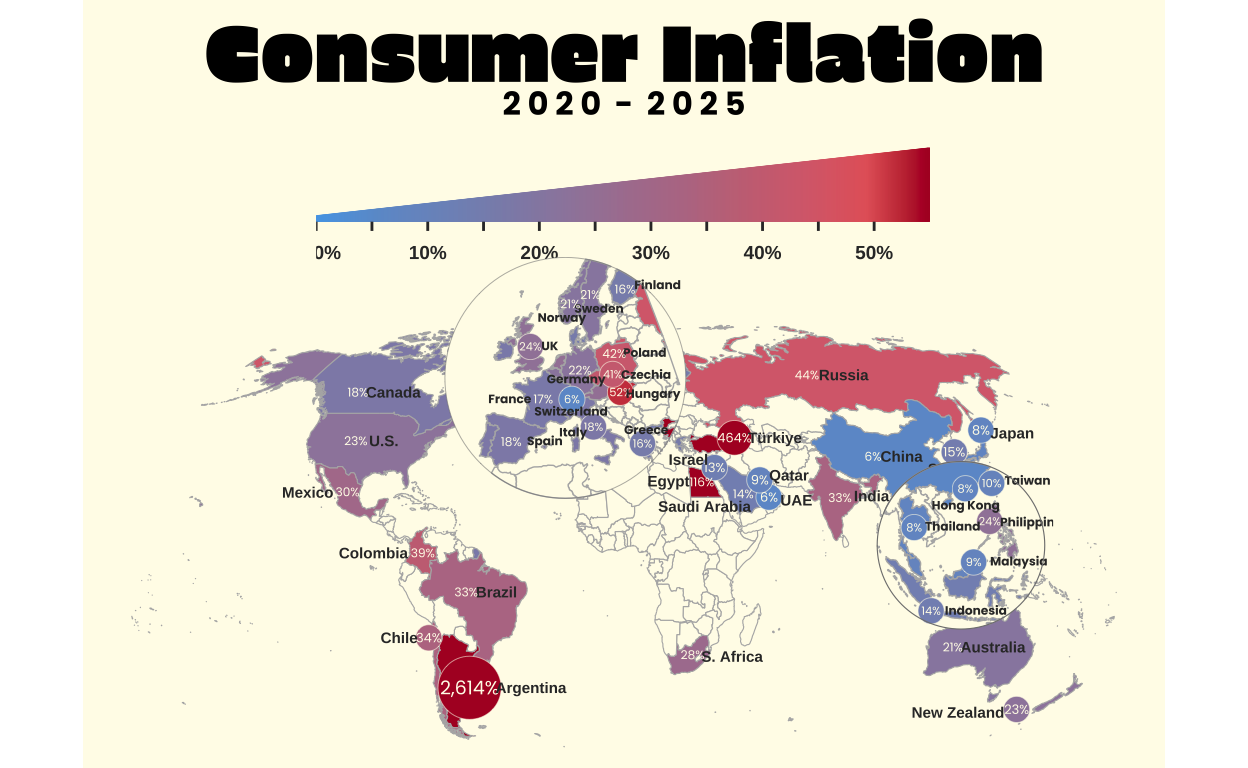

I have decide to create three maps separately to ensure there’s no clash between the layers of bubbles and texts. The base bubble map, the EU lens map and the SEA lens map. Thus, I will create the bubble lists for the three maps separately. Each bubble is nudge to its designated placement on the map for the replication, which I have done manually. Notably, Türkiye and Argentina have bigger bubbles which is why I exclude them from the bubble_rest_list.
# inside the lens
bubble_list_eu <- tibble::tribble(
~ name_label, ~ value_label,
"Hungary", "52%",
"Czechia", "41%",
"UK", "24%",
"Italy", "18%",
"Greece", "16%",
"Switzerland", "6%")
bubble_list_sea <- tibble::tribble(
~ name_label, ~ value_label,
"Philippines", "24%",
"Indonesia", "14%",
"Taiwan", "10%",
"Malaysia", "9%",
"Hong Kong", "8%",
"Thailand", "8%")
bubble_geo_eu <- world_inflation |>
right_join(bubble_list_eu, by = c("name" = "name_label")) |>
st_point_on_surface()
bubble_geo_sea <- world_inflation |>
right_join(bubble_list_sea, by = c("name" = "name_label")) |>
st_point_on_surface()
# adjust bubble position
row_greece <- which(bubble_geo_eu$name_label == "Greece")
new_grc_coords <- st_point(c(21.65, 40.25))
bubble_geo_eu$geometry[row_greece] <- st_sfc(new_grc_coords) |>
st_set_crs(st_crs(bubble_geo_eu))
st_geometry(bubble_geo_eu)[bubble_geo_eu$name == "Czechia"] <- st_sfc(
st_point(c(18.0, 50.0)), crs = st_crs(bubble_geo_eu))
# outside of the lens
bubble_list_rest <- tibble::tribble(
~ name_label, ~ value_label,
"Chile", "34%",
"New Zealand", "23%",
"S. Korea", "15%",
"Israel", "13%",
"Qatar", "9%",
"Japan", "8%",
"UAE", "6%")
bubble_geo_rest <- world_inflation |>
right_join(bubble_list_rest, by = c("name" = "name_label")) |>
st_point_on_surface()
# Argentina
bubble_arg <- tibble::tribble(
~ name_label, ~ value_label,
"Argentina", "2,614%")
bubble_geo_arg <- world_inflation |>
right_join(bubble_arg, by = c("name" = "name_label")) |>
st_point_on_surface()
# Türkiye
bubble_tur <- tibble::tribble(
~ name_label, ~ value_label,
"Türkiye", "464%")
bubble_geo_tur <- world_inflation |>
right_join(bubble_tur, by = c("name" = "name_label")) |>
st_point_on_surface()
# adjust the bubbles' position
st_geometry(bubble_geo_rest)[bubble_geo_rest$name == "Qatar"] <- st_sfc(
st_point(c(51.2, 27.5)), crs = st_crs(bubble_geo_rest))
st_geometry(bubble_geo_rest)[bubble_geo_rest$name == "UAE"] <- st_sfc(
st_point(c(54, 22)), crs = st_crs(bubble_geo_rest))
st_geometry(bubble_geo_tur)[bubble_geo_tur$name == "Türkiye"] <- st_sfc(
st_point(c(44.0, 41.0)), crs = st_crs(bubble_geo_tur))
st_geometry(bubble_geo_rest)[bubble_geo_rest$name == "New Zealand"] <- st_sfc(
st_point(c(160.0, -46.0)), crs = st_crs(bubble_geo_rest))
st_geometry(bubble_geo_rest)[bubble_geo_rest$name == "Chile"] <- st_sfc(
st_point(c(-72.0, -23.0)), crs = st_crs(bubble_geo_rest))
st_geometry(bubble_geo_arg)[bubble_geo_arg$name == "Argentina"] <- st_sfc(
st_point(c(-60.0, -39.0)), crs = st_crs(bubble_geo_arg))
st_geometry(bubble_geo_sea)[bubble_geo_sea$name == "Malaysia"] <- st_sfc(
st_point(c(116.0, 5.0)), crs = st_crs(bubble_geo_sea))
st_geometry(bubble_geo_sea)[bubble_geo_sea$name == "Indonesia"] <- st_sfc(
st_point(c(106.0, -6.6)), crs = st_crs(bubble_geo_sea))
st_geometry(bubble_geo_sea)[bubble_geo_sea$name == "Philippines"] <- st_sfc(
st_point(c(120.0, 14.6)), crs = st_crs(bubble_geo_sea))Base Map + Scale + Base Countries’ Bubbles - Plot1

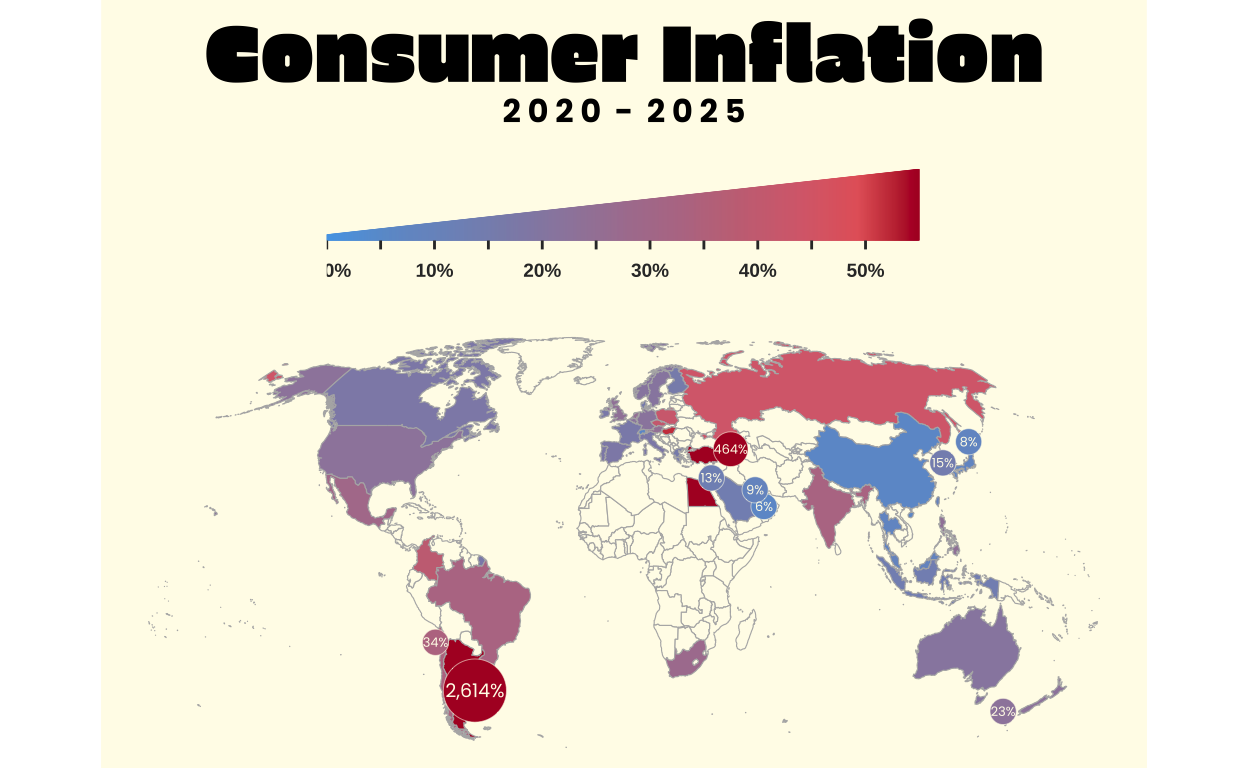

First I will assemble the gradient base map with the bubbles that are not in the lenses and the gradient scale bar using annotate_custom.
plot1 <- ggplot(world_inflation) +
# map Layer
geom_sf(aes(fill = `5-yr cum\nchange (%)`), color = "grey70", size = 0.2) +
# the Gradient Scale on the map
scale_fill_gradientn(
colors = vc_palette,
limits = limit_range,
oob = scales::squish,
na.value = "#fffce9",
) +
# the Gradient Bar
annotation_custom(
grob = scale_grob,
xmin = -10500000, xmax = 10500000,
ymin = 6500000, ymax = 16000000
) +
# bubbles rest
geom_point(
data = bubble_geo_rest,
stat = "sf_coordinates",
aes(geometry = geometry,
fill = `5-yr cum\nchange (%)`,
),
size = 4.5, # Adjust bubble size here
color = "#fffce9", # The border of the bubble
shape = 21, # Shape 21 allows both fill and color (border)
stroke = 0.15, # Thickness of the white border
) +
# text inside bubbles rest
geom_text(
data = bubble_geo_rest,
stat = "sf_coordinates",
aes(geometry = geometry, label = value_label),
color = "#fffce9",
size = 1.7,
fontface = "plain",
family = "poppins"
)+
# bubble Argentina
geom_point(
data = bubble_geo_arg,
stat = "sf_coordinates",
aes(geometry = geometry,
fill = `5-yr cum\nchange (%)`),
size = 11, # Adjust bubble size here
color = "#fffce9", # The border of the bubble
shape = 21, # Shape 21 allows both fill and color (border)
stroke = 0.15, # Thickness of the white border
) +
# text inside bubble Argentina
geom_text(
data = bubble_geo_arg,
stat = "sf_coordinates",
aes(geometry = geometry, label = value_label),
color = "#fffce9",
size = 2.5,
fontface = "plain",
family = "poppins"
)+
# bubble Türkiye
geom_point(
data = bubble_geo_tur,
stat = "sf_coordinates",
aes(geometry = geometry,
fill = `5-yr cum\nchange (%)`),
size = 6, # Adjust bubble size here
color = "#fffce9", # The border of the bubble
shape = 21, # Shape 21 allows both fill and color (border)
stroke = 0.15, # Thickness of the white border
) +
# text inside bubble Türkiye
geom_text(
data = bubble_geo_tur,
stat = "sf_coordinates",
aes(geometry = geometry, label = value_label),
color = "#fffce9",
size = 1.7,
fontface = "plain",
family = "poppins"
) +
# theme and projection
coord_sf(crs = "+proj=robin") + # Robinson Projection
theme_void() + # Removes axes and standard grid
theme(
# background Colors
plot.background = element_rect(fill = "#fffce9", color = NA),
panel.background = element_rect(fill = "#fffce9", color = NA),
# legend Positioning
legend.position = "none"
) +
labs(title = "Consumer Inflation",
subtitle = "2 0 2 0 - 2 0 2 5") +
theme(
plot.title = element_text(
hjust = 0.5,
face = "plain",
size = 30,
margin = margin(t = 10),
family = "erica"),
plot.subtitle = element_text(
hjust = 0.5,
face = "bold",
size = 12,
margin = margin(t = 4, b = 70),
family = "poppins",
))
print(plot1)

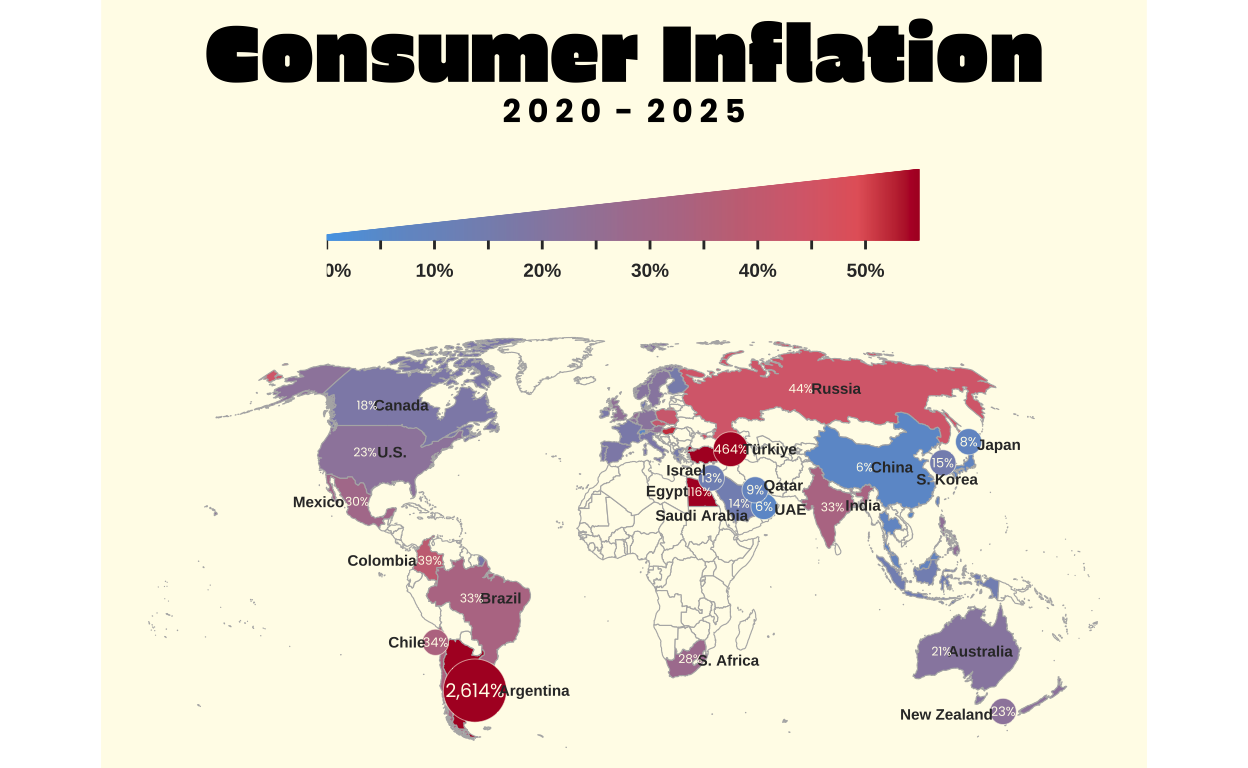

Country Labels and Numbers
For the country labels and numbers, I also separate them according to base, EU lens and SEA lens, so that I can work on the specific placement and avoid overlaps.
country_label_base <- tibble::tribble(
~ name_label,
"Argentina", "Türkiye", "Egypt", "Russia", "Colombia", "Chile", "Brazil",
"India", "Mexico", "S. Africa", "New Zealand", "Australia", "Canada", "S. Korea",
"Saudi Arabia", "Israel", "Qatar", "Japan", "China", "UAE", "U.S.")
country_label_geo_base <- world_inflation |>
right_join(country_label_base, by = c("name" = "name_label")) |>
st_point_on_surface()
# adjusting the position
st_geometry(country_label_geo_base)[country_label_geo_base$name == "Argentina"] <- st_sfc(
st_point(c(-36.0, -39.0)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "Türkiye"] <- st_sfc(
st_point(c(60.0, 41.0)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "Egypt"] <- st_sfc(
st_point(c(17.0, 27.1)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "Russia"] <- st_sfc(
st_point(c(102.0, 62.0)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "Colombia"] <- st_sfc(
st_point(c(-90.5, 4.1)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "Chile"] <- st_sfc(
st_point(c(-83.0, -23.0)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "Brazil"] <- st_sfc(
st_point(c(-46.0, -8.4)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "India"] <- st_sfc(
st_point(c(92.0, 22.35)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "Mexico"] <- st_sfc(
st_point(c(-117.0, 23.5)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "S. Africa"] <- st_sfc(
st_point(c(41.0, -29.0)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "New Zealand"] <- st_sfc(
st_point(c(137.0, -47.0)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "Australia"] <- st_sfc(
st_point(c(138.0, -26.0)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "Canada"] <- st_sfc(
st_point(c(-100.5, 56.0)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "S. Korea"] <- st_sfc(
st_point(c(127.0, 31.0)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "Saudi Arabia"] <- st_sfc(
st_point(c(30.0, 19.0)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "Israel"] <- st_sfc(
st_point(c(25.0, 34.0)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "Qatar"] <- st_sfc(
st_point(c(62.4, 29.0)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "China"] <- st_sfc(
st_point(c(107.0, 35.0)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "Japan"] <- st_sfc(
st_point(c(155.0, 42.5)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "UAE"] <- st_sfc(
st_point(c(64.0, 21.0)), crs = st_crs(country_label_geo_base))
st_geometry(country_label_geo_base)[country_label_geo_base$name == "U.S."] <- st_sfc(
st_point(c(-94.0, 40.0)), crs = st_crs(country_label_geo_base))
country_label_eu <- tibble::tribble(
~ name_label,
"Spain", "France", "Finland", "Sweden", "Poland", "Germany", "Norway", "Hungary", "Czechia", "UK", "Italy", "Greece", "Switzerland")
country_label_geo_eu <- world_inflation |>
right_join(country_label_eu, by = c("name" = "name_label")) |>
st_point_on_surface()
# adjusting the position
st_geometry(country_label_geo_eu)[country_label_geo_eu$name == "Spain"] <- st_sfc(
st_point(c(3.0, 40.5)), crs = st_crs(country_label_geo_eu))
st_geometry(country_label_geo_eu)[country_label_geo_eu$name == "France"] <- st_sfc(
st_point(c(-5.0, 46.2)), crs = st_crs(country_label_geo_eu))
st_geometry(country_label_geo_eu)[country_label_geo_eu$name == "Finland"] <- st_sfc(
st_point(c(36.0, 61.0)), crs = st_crs(country_label_geo_eu))
st_geometry(country_label_geo_eu)[country_label_geo_eu$name == "Sweden"] <- st_sfc(
st_point(c(17.0, 60.0)), crs = st_crs(country_label_geo_eu))
st_geometry(country_label_geo_eu)[country_label_geo_eu$name == "Norway"] <- st_sfc(
st_point(c(6.0, 59.0)), crs = st_crs(country_label_geo_eu))
st_geometry(country_label_geo_eu)[country_label_geo_eu$name == "Poland"] <- st_sfc(
st_point(c(26.5, 52.2)), crs = st_crs(country_label_geo_eu))
st_geometry(country_label_geo_eu)[country_label_geo_eu$name == "Germany"] <- st_sfc(
st_point(c(9.5, 49.8)), crs = st_crs(country_label_geo_eu))
st_geometry(country_label_geo_eu)[country_label_geo_eu$name == "Hungary"] <- st_sfc(
st_point(c(26.0, 46.0)), crs = st_crs(country_label_geo_eu))
st_geometry(country_label_geo_eu)[country_label_geo_eu$name == "Czechia"] <- st_sfc(
st_point(c(25.5, 49.0)), crs = st_crs(country_label_geo_eu))
st_geometry(country_label_geo_eu)[country_label_geo_eu$name == "UK"] <- st_sfc(
st_point(c(3.0, 54.7)), crs = st_crs(country_label_geo_eu))
st_geometry(country_label_geo_eu)[country_label_geo_eu$name == "Italy"] <- st_sfc(
st_point(c(8.56, 41.87)), crs = st_crs(country_label_geo_eu))
st_geometry(country_label_geo_eu)[country_label_geo_eu$name == "Greece"] <- st_sfc(
st_point(c(23.0, 41.0)), crs = st_crs(country_label_geo_eu))
st_geometry(country_label_geo_eu)[country_label_geo_eu$name == "Switzerland"] <- st_sfc(
st_point(c(8.2, 45.0)), crs = st_crs(country_label_geo_eu))
country_label_sea <- tibble::tribble(
~ name_label,
"Philippines", "Indonesia", "Taiwan", "Malaysia", "Hong Kong", "Thailand")
country_label_geo_sea <- world_inflation |>
right_join(country_label_sea, by = c("name" = "name_label")) |>
st_point_on_surface()
# adjusting the position
st_geometry(country_label_geo_sea)[country_label_geo_sea$name == "Taiwan"] <- st_sfc(
st_point(c(130.0, 23.82)), crs = st_crs(country_label_geo_sea))
st_geometry(country_label_geo_sea)[country_label_geo_sea$name == "Philippines"] <- st_sfc(
st_point(c(130.88, 14.0)), crs = st_crs(country_label_geo_sea))
st_geometry(country_label_geo_sea)[country_label_geo_sea$name == "Indonesia"] <- st_sfc(
st_point(c(116.5, -6.48)), crs = st_crs(country_label_geo_sea))
st_geometry(country_label_geo_sea)[country_label_geo_sea$name == "Malaysia"] <- st_sfc(
st_point(c(126.69, 5.0)), crs = st_crs(country_label_geo_sea))
st_geometry(country_label_geo_sea)[country_label_geo_sea$name == "Hong Kong"] <- st_sfc(
st_point(c(114.18, 18.5)), crs = st_crs(country_label_geo_sea))
st_geometry(country_label_geo_sea)[country_label_geo_sea$name == "Thailand"] <- st_sfc(
st_point(c(111.00, 13.5)), crs = st_crs(country_label_geo_sea))
number_label_base <- tibble::tribble(
~ name_label,
"Egypt", "Russia", "Colombia", "Brazil", "India", "Mexico", "S. Africa",
"U.S.", "Australia", "Canada", "Saudi Arabia", "China")
number_label_geo_base <- world_inflation |>
right_join(number_label_base, by = c("name" = "name_label")) |>
mutate(`5-yr cum\nchange (%)` = paste0(`5-yr cum\nchange (%)`, "%")) |>
st_point_on_surface()
# adjust the position
st_geometry(number_label_geo_base)[number_label_geo_base$name == "Russia"] <- st_sfc(
st_point(c(85.0, 62.0)), crs = st_crs(number_label_geo_base))
st_geometry(number_label_geo_base)[number_label_geo_base$name == "Brazil"] <- st_sfc(
st_point(c(-57.0, -8.4)), crs = st_crs(number_label_geo_base))
st_geometry(number_label_geo_base)[number_label_geo_base$name == "China"] <- st_sfc(
st_point(c(96.0, 35.0)), crs = st_crs(number_label_geo_base))
st_geometry(number_label_geo_base)[number_label_geo_base$name == "Saudi Arabia"] <- st_sfc(
st_point(c(44.57, 23.0)), crs = st_crs(number_label_geo_base))
st_geometry(number_label_geo_base)[number_label_geo_base$name == "U.S."] <- st_sfc(
st_point(c(-105.0, 40.0)), crs = st_crs(number_label_geo_base))
st_geometry(number_label_geo_base)[number_label_geo_base$name == "Canada"] <- st_sfc(
st_point(c(-116.0, 56.0)), crs = st_crs(number_label_geo_base))
st_geometry(number_label_geo_base)[number_label_geo_base$name == "Australia"] <- st_sfc(
st_point(c(123.0, -26.0)), crs = st_crs(number_label_geo_base))
number_label_eu <- tibble::tribble(
~ name_label,
"Spain", "France", "Finland", "Sweden", "Poland", "Germany", "Norway")
number_label_geo_eu <- world_inflation |>
right_join(number_label_eu, by = c("name" = "name_label")) |>
mutate(`5-yr cum\nchange (%)` = paste0(`5-yr cum\nchange (%)`, "%")) |>
st_point_on_surface()
# adjust the position
st_geometry(number_label_geo_eu)[number_label_geo_eu$name == "Gremany"] <- st_sfc(
st_point(c(10.0, 60.0)), crs = st_crs(number_label_geo_eu))
st_geometry(number_label_geo_eu)[number_label_geo_eu$name == "Norway"] <- st_sfc(
st_point(c(8.5, 61.0)), crs = st_crs(number_label_geo_eu))
st_geometry(number_label_geo_eu)[number_label_geo_eu$name == "Finland"] <- st_sfc(
st_point(c(26.0, 62.0)), crs = st_crs(number_label_geo_eu))
st_geometry(number_label_geo_eu)[number_label_geo_eu$name == "Poland"] <- st_sfc(
st_point(c(19.14, 53.0)), crs = st_crs(number_label_geo_eu))plot2 - plot1(base plot) + Country Labels and Numbers
Now I will layer the base country and number on the base plot, plot1.
plot2 <- plot1 +
# country names
geom_text(
data = country_label_geo_base,
stat = "sf_coordinates",
aes(geometry = geometry, label = name),
color = "#333333",
size = 2, # Adjust text size
fontface = "bold", # "plain", "bold", "italic"
family = "roboto",
inherit.aes = FALSE
) +
# number labels
geom_text(
data = number_label_geo_base,
stat = "sf_coordinates",
aes(geometry = geometry, label = `5-yr cum\nchange (%)`),
color = "#fffce9",
size = 1.6, # Adjust text size
fontface = "plain", # "plain", "bold", "italic"
family = "poppins",
inherit.aes = FALSE
)
print(plot2)
Magnified EU and SEA and the Bubbles in the Lenses
Build the magnifying lens function and add the bubble + number + country name layer on the lenses.
sf_use_s2(FALSE)
create_lens_eu <- function(data, bubble_data, center_lon, center_lat, radius_km) {
# cut the map to a rough square box first.
# create a bounding box +/- 25 degrees around the center.
buff <- 25
bbox <- st_bbox(c(xmin = center_lon - buff, xmax = center_lon + buff,
ymin = center_lat - buff, ymax = center_lat + buff),
crs = st_crs(data))
# suppress warnings for the crop
data_cropped <- suppressWarnings(st_crop(data, bbox))
# define projection (Azimuthal Equidistant)
lens_crs <- paste0("+proj=aeqd +lat_0=", center_lat, " +lon_0=", center_lon)
# create circle
center_pt <- st_sfc(st_point(c(center_lon, center_lat)), crs = 4326)
center_pt_proj <- st_transform(center_pt, lens_crs)
circle_border <- st_buffer(center_pt_proj, dist = radius_km * 1000)
data_proj <- st_transform(data_cropped, lens_crs)
data_proj <- st_make_valid(data_proj)
lens_data <- st_intersection(data_proj, circle_border)
lens_data <- st_collection_extract(lens_data, "POLYGON")
# process Bubble Data (Transform -> Clip)
bubbles_proj_eu <- st_transform(bubble_geo_eu, lens_crs)
lens_bubbles_eu <- st_intersection(bubbles_proj_eu, circle_border)
# create plot
ggplot() +
geom_sf(data = circle_border, fill = "#fffce9", color = NA) +
geom_sf(data = lens_data,
aes(fill = `5-yr cum\nchange (%)`),
color = "grey70", size = 0.25) +
geom_point(
data = bubble_geo_eu,
stat = "sf_coordinates",
aes(geometry = geometry,
fill = `5-yr cum\nchange (%)`),
size = 4.5,
color = "#fffce9",
shape = 21,
stroke = 0.15
) +
# numbers inside bubbles
geom_text(
data = bubble_geo_eu,
stat = "sf_coordinates",
aes(geometry = geometry, label = value_label),
color = "#fffce9",
size = 1.5,
fontface = "plain",
family = "poppins",
) +
# country labels
geom_text(
data = country_label_geo_eu,
stat = "sf_coordinates",
aes(geometry = geometry, label = name),
color = "#333333",
size = 1.6,
fontface = "bold",
family = "poppins",
) +
# number labels
geom_text(
data = number_label_geo_eu,
stat = "sf_coordinates",
aes(geometry = geometry, label = `5-yr cum\nchange (%)`),
color = "#fffce9",
size = 1.6,
fontface = "plain",
family = "poppins",
) +
# scale
scale_fill_gradientn(
colors = vc_palette,
limits = limit_range,
oob = scales::squish,
na.value = "#fffce9"
) +
# border
geom_sf(data = circle_border, fill = NA, color = "grey50", linewidth = 0.1) +
# theme
coord_sf(datum = NA) +
theme_void() +
theme(legend.position = "none"
)
}
create_lens_sea <- function(data, bubble_data, center_lon, center_lat, radius_km) {
buff <- 25
bbox <- st_bbox(c(xmin = center_lon - buff, xmax = center_lon + buff,
ymin = center_lat - buff, ymax = center_lat + buff),
crs = st_crs(data))
data_cropped <- suppressWarnings(st_crop(data, bbox))
lens_crs <- paste0("+proj=aeqd +lat_0=", center_lat, " +lon_0=", center_lon)
center_pt <- st_sfc(st_point(c(center_lon, center_lat)), crs = 4326)
center_pt_proj <- st_transform(center_pt, lens_crs)
circle_border <- st_buffer(center_pt_proj, dist = radius_km * 1000)
data_proj <- st_transform(data_cropped, lens_crs)
data_proj <- st_make_valid(data_proj)
lens_data <- st_intersection(data_proj, circle_border)
lens_data <- st_collection_extract(lens_data, "POLYGON")
bubbles_proj_sea <- st_transform(bubble_geo_sea, lens_crs)
lens_bubbles_sea <- st_intersection(bubbles_proj_sea, circle_border)
# create plot
ggplot() +
geom_sf(data = circle_border, fill = "#fffce9", color = NA) +
geom_sf(data = lens_data,
aes(fill = `5-yr cum\nchange (%)`),
color = "grey70", size = 0.25) +
# bubbles
geom_point(
data = bubble_geo_sea,
stat = "sf_coordinates",
aes(geometry = geometry,
fill = `5-yr cum\nchange (%)`),
size = 4.5,
color = "#fffce9",
shape = 21,
stroke = 0.15
) +
# text inside bubbles
geom_text(
data = bubble_geo_sea,
stat = "sf_coordinates",
aes(geometry = geometry, label = value_label),
color = "#fffce9",
size = 1.5,
fontface = "plain",
family = "poppins"
) +
# country labels
geom_text(
data = country_label_geo_sea,
stat = "sf_coordinates",
aes(geometry = geometry, label = name),
color = "#333333",
size = 1.6,
fontface = "bold",
family = "poppins"
) +
# scale
scale_fill_gradientn(
colors = vc_palette,
limits = limit_range,
oob = scales::squish,
na.value = "#fffce9"
) +
# border
geom_sf(data = circle_border, fill = NA, color = "grey50", linewidth = 0.2) +
# theme
coord_sf(datum = NA) +
theme_void() +
theme(legend.position = "none"
)
}p_lens_eu <- create_lens_eu(
data = world_inflation,
bubble_data = bubble_geo_eu,
center_lon = 7, # 7
center_lat = 50, # 49
radius_km = 2000
)
p_lens_sea <- create_lens_sea(
data = world_inflation,
bubble_data = bubble_geo_sea,
center_lon = 113,
center_lat = 9,
radius_km = 2200
)plot3 - plot2 + the Magnifying Lenses
plot_3 <- ggdraw(plot2) +
draw_plot(p_lens_eu, x = -0.047, y = 0.358, width = 1, height = 0.3, scale = 1.15) +
draw_plot(p_lens_sea, x = 0.27, y = 0.14, width = 1, height = 0.3, scale = 0.8)
print(plot_3)
final_plot - plot3 + the Texts and Arrows
After plotting the base map, lenses and gradient scale bar, now it is the final step to add on the texts and arrows next to Argentina, the SEA lens using the geom_text and geom_curve, last but not least, the little description besides the gradient scale bar.
texts <- tibble(label = c(
"Consumer Inflation Cumulative\nChange, 2020-2025",
"President Milei's fiscal\noverhaul has lowered\nArgentina's annualized\ninflation rate to 21%\nas of June 2025.",
"Post-pandemic inflation\ndidn't hit Asia as hard\nas it hit Europe."),
x = c(0.235, 0.43, 0.65),
y = c(0.80, 0.16, 0.16),
hjust = c(0, 0, 0),
size = c(2.5, 1.5, 1.3),
font = "poppins",
fontface = c("bold", "italic", "italic"),
color = c("#333333", "#D86C7B", "#6b9bd1")
)
final_plot <- plot_3 +
geom_text(
data = texts,
aes(x = x, y = y, label = label, hjust = hjust),
color = texts$color,
size = texts$size,
fontface = texts$fontface,
family = "poppins",
lineheight = 0.9,
inherit.aes = FALSE
) +
geom_curve(
aes(x = 0.425, y = 0.18, xend = 0.40, yend = 0.13),
curvature = 0.3, # Negative = Curves Right (concave down)
color = "#D86C7B",
size = 0.3,
arrow = arrow(length = unit(0.01, "npc"), type = "closed"),
inherit.aes = FALSE
) +
geom_curve(
aes(x = 0.69, y = 0.19, xend = 0.717, yend = 0.24),
curvature = -0.3, # Negative = Curves Right (looks best for this angle)
color = "#6b9bd1",
size = 0.3,
arrow = arrow(length = unit(0.01, "npc"), type = "closed"),
inherit.aes = FALSE
)
print(final_plot)
Improvement
While making the replica of this map, I find myself spending most of the time manually nudging every label on the map, which are not visually clear even after adjusting them manually. Thus, I decided to make a hex map divided by the continent to keep the geographical relevance for a map visualization, in each continent, countries are ranked by inflation rates on log scale to better represent the drastic difference with color.
Packages
Data Cleaning
inflation2025 <- read_csv("global inflation 2025_Deutsche Bank - Sheet1.csv")
inflation_alt <- inflation2025 |>
select(Economy, Inflation_Raw = `5-yr cum\nchange (%)`) |>
mutate(
Inflation = as.numeric(str_remove_all(Inflation_Raw, ",")),
Inflation_Log = log10(Inflation),
Text_Color = ifelse(Inflation < 60, "black", "white"),
Label_Text = paste0(Economy, "\n", Inflation, "%")
) |>
mutate(Economy = case_when(Economy == "South Africa" ~ "S. Africa",
Economy == "Turkey" ~ "Türkiye",
Economy == "United Kingdom" ~ "UK",
Economy == "South Korea" ~ "S. Korea",
Economy == "United Arab Emirates" ~ "UAE",
Economy == "United States" ~ "U.S.",
Economy == "Czech Republic" ~ "Czechia",
TRUE ~ Economy))
# assign region
inflation_alt <- inflation_alt %>%
mutate(Region = case_when(
Economy %in% c("US", "Canada", "Mexico", "Brazil", "Argentina", "Chile", "Colombia") ~ "Americas",
Economy %in% c("China", "Japan", "S. Korea", "Taiwan", "Hong Kong", "India", "Thailand", "Malaysia", "Singapore", "Indonesia", "Philippines", "Australia", "New Zealand") ~ "Asia Pacific",
Economy %in% c("Türkiye", "Israel", "Egypt", "Saudi Arabia", "Qatar", "UAE", "S. Africa") ~ "West Asia & Africa",
TRUE ~ "Europe"
))building hexagons
get_hex_grid_3wide <- function(n) {
width <- 3
i <- 0:(n-1)
col <- i %% width
row <- i %/% width
x <- col + ifelse(row %% 2 == 1, 0.5, 0)
y <- -row * 0.9
data.frame(rank = i + 1, x_center = x, y_center = y)
}
center_data <- inflation_alt |>
group_by(Region) |>
arrange(desc(Inflation)) |>
mutate(rank = row_number()) |>
group_split() |>
purrr::map_dfr(function(dat) {
coords <- get_hex_grid_3wide(nrow(dat))
inner_join(dat, coords, by = "rank")
})
region_pos <- tibble(
Region = c("Americas", "Europe", "West Asia & Africa", "Asia Pacific"),
x_off = c(0, 7, 0, 3.5),
y_off = c(2, 2, -2.5, 2)
)
final_centers <- center_data |>
inner_join(region_pos, by = "Region") |>
mutate(
cx = x_center + x_off,
cy = y_center + y_off
)
# function to create 6 vertices for a hexagon at (cx, cy)
make_hexagon <- function(cx, cy, r = 0.55) {
angles <- seq(0, 2*pi, length.out = 7)[-7]
data.frame(
vx = cx + r * cos(angles),
vy = cy + r * sin(angles)
)
}
polygon_data <- final_centers |>
group_by(Economy) |>
do(make_hexagon(.$cx, .$cy, r = 0.55)) |>
ungroup() |>
left_join(final_centers, by = "Economy")
region_titles <- final_centers %>%
group_by(Region) %>%
summarize(x = mean(cx), y = max(cy) + 1.2)final alternative plot

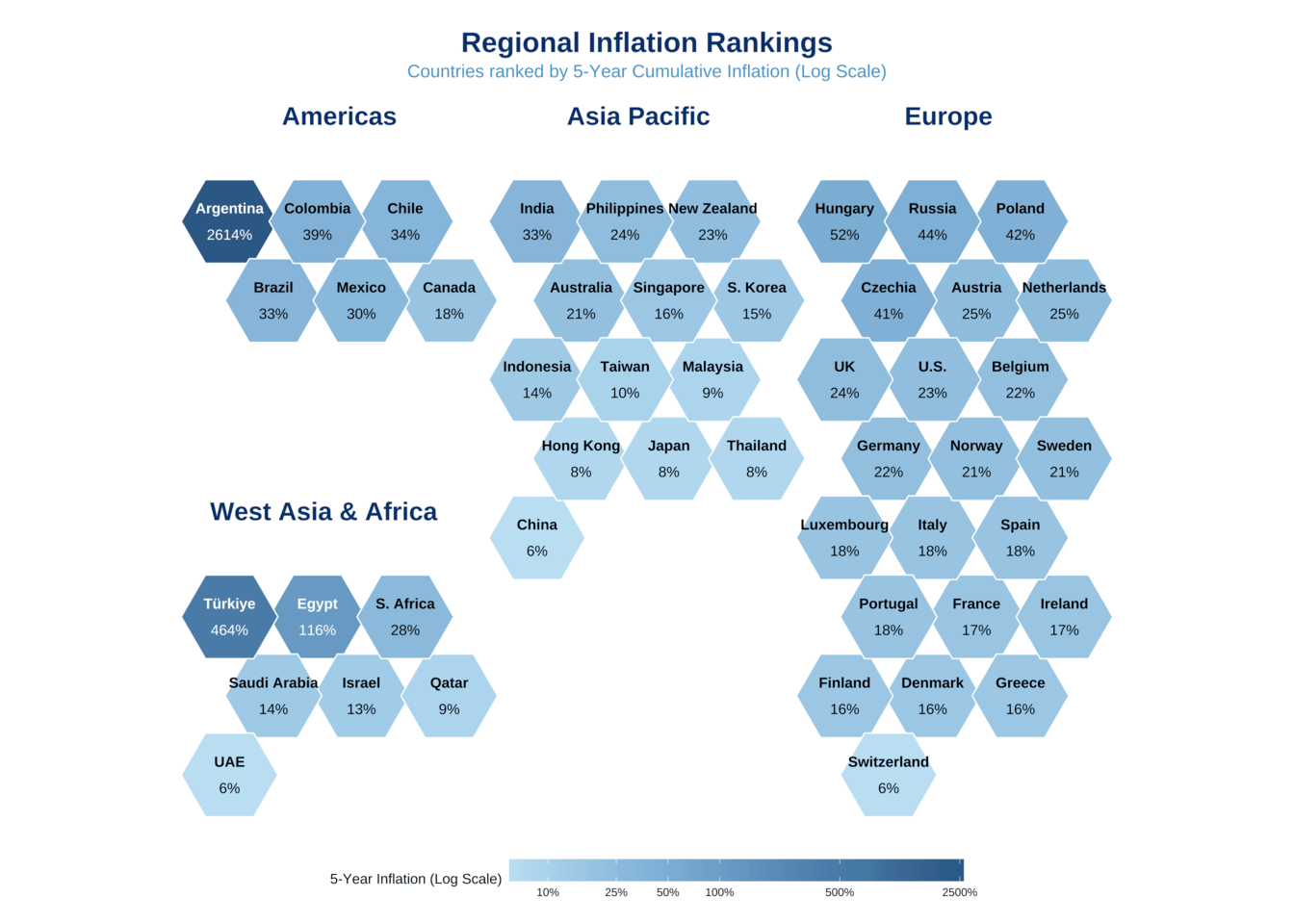

alt_plot <- ggplot() +
geom_polygon(
data = polygon_data,
aes(x = vx, y = vy, group = Economy, fill = Inflation_Log),
color = "white", size = 0.5
) +
geom_text(data = region_titles, aes(x = x, y = y, label = Region),
fontface = "bold", color = "#08306b", size = 7) +
geom_text(
data = final_centers,
aes(x = cx, y = cy, label = Economy, color = Text_Color),
size = 4, fontface = "bold", nudge_y = 0.15
) +
geom_text(
data = final_centers,
aes(x = cx, y = cy, label = paste0(Inflation, "%"), color = Text_Color),
size = 4, nudge_y = -0.15
) +
scale_color_identity() +
scale_fill_gradientn(
colors = paletteer_c("ggthemes::Blue", 30),
breaks = log10(c(10, 25, 50, 100, 500, 2500)),
labels = c("10%", "25%", "50%", "100%", "500%", "2500%"),
name = "5-Year Inflation (Log Scale)"
) +
coord_fixed() +
theme_void() +
theme(
plot.title = element_text(size = 22, face = "bold", hjust = 0.5, color = "#08306b"),
plot.subtitle = element_text(size = 14, hjust = 0.5, color = "#4292c6"),
legend.position = "bottom",
legend.key.width = unit(2.5, "cm"),
plot.margin = margin(20, 20, 20, 20)
) +
labs(
title = "Regional Inflation Rankings",
subtitle = "Countries ranked by 5-Year Cumulative Inflation (Log Scale)"
)
print(alt_plot)
