Gina Tedesco

The COVID-19 pandemic disproportionately impacted Latin America and the Caribbean (LAC), revealing significant inequalities in health infrastructure and surveillance capacity across the region. In response, the Pan American Health Organization (PAHO) established the COVID-19 Genomic Surveillance Regional Network (COVIGEN) to strengthen genomic sequencing and enable the timely identification of viral variants. From February 2020 to March 2022, this initiative resulted in the sequencing of 126,985 SARS-CoV-2 genomes across 32 LAC countries and territories. Expanding this dataset with genomes from the GISAID database brought the total analyzed to 296,286 genomes from 41 regions, providing a comprehensive view of genomic diversity. The study highlighted disparities in sequencing efforts, ranging from below 0.05% to over 10% of total COVID-19 cases, with countries such as Brazil, Argentina, Colombia, Mexico, and Peru contributing 80% of the sequences. The emergence of regional Variants of Interest (VOIs) like Gamma, Lambda, and Mu emphasized the importance of COVIGEN in tracking viral evolution and guiding public health responses. This analysis further explored the dynamics of variant dissemination by incorporating air traffic data and mobility restrictions to model viral spread patterns, offering insights into the interplay between epidemiology and social behavior during the pandemic.

Getting the Data

The data for this graph was derived from the SARS-CoV-2 genomic surveillance efforts coordinated through the COVID-19 Genomic Surveillance Regional Network (COVIGEN). From its inception in March 2020 to March 2022, COVIGEN supported the sequencing of 126,985 SARS-CoV-2 genomes from 32 countries and territories in Latin America and the Caribbean (LAC). To create a more comprehensive dataset, these genomes were supplemented with additional sequences and metadata obtained from the EpiCoV database hosted on GISAID, covering the same period and geographic region. This aggregation resulted in a dataset of 296,286 genomes from 41 countries and territories, providing a summarized view of genomic diversity and sequencing efforts across the region. The data was further aggregated by combining geographically proximate countries into broader locations, enabling a summarized representation of viral sequencing and lineage diversity. The data specific to this graph was available in the paper’s “Data Availability” section.

Recreating the Graph

Required Libraries

tidyverse: unifies workflows by integrating ggplot2 for graphics and dplyr for data manipulation, providing a consistent and intuitive grammar for transforming and visualizing data.
dplyr: allows intuitive manipulation of data, readable operations on datasets through verb-like functions that transform and reshape data in predictable ways.
ggtext: an extension to ggplot2 that enhances text rendering capabilities

library(tidyverse)
library(dplyr)
library(ggtext)

Country Order Definition

This step defines a custom order for the countries in the visualization. The order is crucial for the graph’s readability

country_order <- c(
  "Argentina", "Bolivia", "Brazil", "Chile", "Colombia", "Ecuador", "Guyana",
  "Paraguay", "Peru", "Suriname", "Uruguay", "Venezuela", "Honduras",
  "Guatemala", "El Salvador", "Costa Rica", "Panama", "Belize", "Nicaragua",
  "Mexico", "Bahamas", "Bermuda", "Cuba", "Dominican Republic", "Haiti",
  "Jamaica", "Barbados", "Dominica", "Saint Barthélemy", "Grenada",
  "Saint Lucia", "Guadeloupe", "Saint Kitts and Nevis", "Trinidad and Tobago",
  "Saint Martin", "Saint Vincent and the Grenadines", "Antigua and Barbuda",
  "Curacao", "Aruba", "Bonaire", "Sint Maarten"
)

Data Loading Preparation

covid_data <- read_csv("SARS-CoV-2.csv") %>%
  mutate(
    Country = factor(Country, levels = rev(country_order))
  )

Transformation Function

This function transforms genome counts to a percentage scale, using a logarithmic transformation to handle wide ranges of data.

genome_to_pct <- function(x) {
  x_log <- log10(x)
  min_log <- log10(2)  # Minimum genome count
  max_log <- log10(129677)  # Maximum genome count
  scaled_value <- 2.5 + ((x_log - min_log) / (max_log - min_log)) * 19.5
  return(scaled_value)
}
breaks<- c(0.5, 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000, 10000, 20000, 50000, 100000)

Plotting the Graph

ggplot() +
  geom_col(
    data = covid_data,
    aes(x = Prop_sequenced_cases, y = Country, fill = Country),
    alpha = 0.6,
    width = 0.8
  ) +
  geom_point(
    data = covid_data,
    aes(x = genome_to_pct(Genomes), y = Country, color = Country),
    size = 1.3
  ) +
  scale_x_continuous(
    name = "Total COVID-19 cases that have been sequenced (%)",
    limits = c(0, 25),
    breaks = seq(0, 25, 5),
    expand = c(0, 0),
    sec.axis = sec_axis(
      ~10^((. - 2.5) / 19.5 * (log10(129677) - log10(2)) + log10(2)),
      name = "Total genomes sequenced (dots)",
      breaks = breaks,
      labels = c(ifelse(breaks %in% c(1, 10, 100, 1000, 10000, 100000),
                        paste0("<span style='color=black;font-weight:900;font-size:7pt'><b>", ifelse(breaks > 1000, paste0(breaks/1000, 'k'), breaks), "</span>"),
                        paste0("<span style='font-size:6pt'>", str_sub(breaks, 1, 1), "</b></span>"))[-1], "<span style='font-size:6pt'>2</b></span>")

    )) +
  scale_fill_manual(values = c(
    "Argentina" = "#7F9EB4", "Bolivia" = "#5aae61", "Brazil" = "#107c4c",
    "Chile" = "#D0E7F1", "Colombia" = "#fcdca1", "Ecuador" = "#f7ac91",
    "Guyana" = "#CCE6D0", "Paraguay" = "#5bc686", "Peru" = "#e22629",
    "Suriname" = "#a6e0a6", "Uruguay" = "#AFC6D0", "Venezuela" = "#e5c195",
    "Honduras" = "#a286c9", "Guatemala" = "#7447b7", "El Salvador" = "#7447b7",
    "Costa Rica" = "#7447b7", "Panama" = "#7447b7", "Belize" = "#7447b7",
    "Nicaragua" = "#7447b7", "Mexico" = "#a3a1ed", "Bahamas" = "#FECFD5",
    "Bermuda" = "#FECFD5", "Cuba" = "#FECFD5", "Dominican Republic" = "#f21d92",
    "Haiti" = "#f21d92", "Jamaica" = "#f21d92", "Barbados" = "#ff69a0",
    "Dominica" = "#ff69a0", "Saint Barthélemy" = "#ff69a0", "Grenada" = "#ff69a0",
    "Saint Lucia" = "#ff69a0", "Guadeloupe" = "#ff69a0", "Saint Kitts and Nevis" = "#ff69a0",
    "Trinidad and Tobago" = "#ff69a0", "Saint Martin" = "#ff69a0",
    "Saint Vincent and the Grenadines" = "#ff69a0", "Antigua and Barbuda" = "#ff69a0",
    "Curacao" = "#ff69a0", "Aruba" = "#ff69a0", "Bonaire" = "#ff69a0",
    "Sint Maarten" = "#ff69a0"
  )) +
  scale_color_manual(values = c(
    "Argentina" = "#176EA9", "Bolivia" = "#F76F4E", "Brazil" = "#008C3C",
    "Chile" = "#B6D1DA", "Colombia" = "#F6D98E", "Ecuador" = "#FEAE92",
    "Guyana" = "#A8E3B5", "Paraguay" = "#46C383", "Peru" = "#E92721",
    "Suriname" = "#A9E7B4", "Uruguay" = "#3FAFD5", "Venezuela" = "#FB9E1E",
    "Honduras" = "#6E52A8", "Guatemala" = "#6E52A8", "El Salvador" = "#6E52A8",
    "Costa Rica" = "#6E52A8", "Panama" = "#6E52A8", "Belize" = "#6E52A8",
    "Nicaragua" = "#6E52A8", "Mexico" = "#A19AC4", "Bahamas" = "#FDB6BE",
    "Bermuda" = "#FDB6BE", "Cuba" = "#E7298E", "Dominican Republic" = "#E7298E",
    "Haiti" = "#E7298E", "Jamaica" = "#E7298E", "Barbados" = "#FF6CA4",
    "Dominica" = "#FF6CA4", "Saint Barthélemy" = "#FF6CA4", "Grenada" = "#FF6CA4",
    "Saint Lucia" = "#FF6CA4", "Guadeloupe" = "#FF6CA4", "Saint Kitts and Nevis" = "#FF6CA4",
    "Trinidad and Tobago" = "#FF6CA4", "Saint Martin" = "#FF6CA4",
    "Saint Vincent and the Grenadines" = "#FF6CA4", "Antigua and Barbuda" = "#FF6CA4",
    "Curacao" = "#FF6CA4", "Aruba" = "#FF6CA4", "Bonaire" = "#FF6CA4",
    "Sint Maarten" = "#FF6CA4"
  )) +
  labs(y = NULL) +
  theme_minimal() +
  theme(
    panel.grid.major.y = element_line(color = "gray90"),
    panel.grid.major.x = element_blank(),
    panel.grid.minor = element_blank(),
    axis.text.y = element_text(size = 10, hjust = 1),
    axis.text.x = element_text(size = 10),
    axis.text.x.sec = element_text(size = 10),
    axis.text=element_markdown (),
    axis.title.x = element_text(size = 12),
    legend.position = "none",  # No legend
    plot.margin = margin(1, 1, 1, 1, "cm")
  )

While this graph is very informative, it is challenging to read. First, there are too many colors associated with the countries that don’t suggest any obvious pattern. Since it is a double x-axis graph it’s hard to understand where one should begin to interpret the graph.

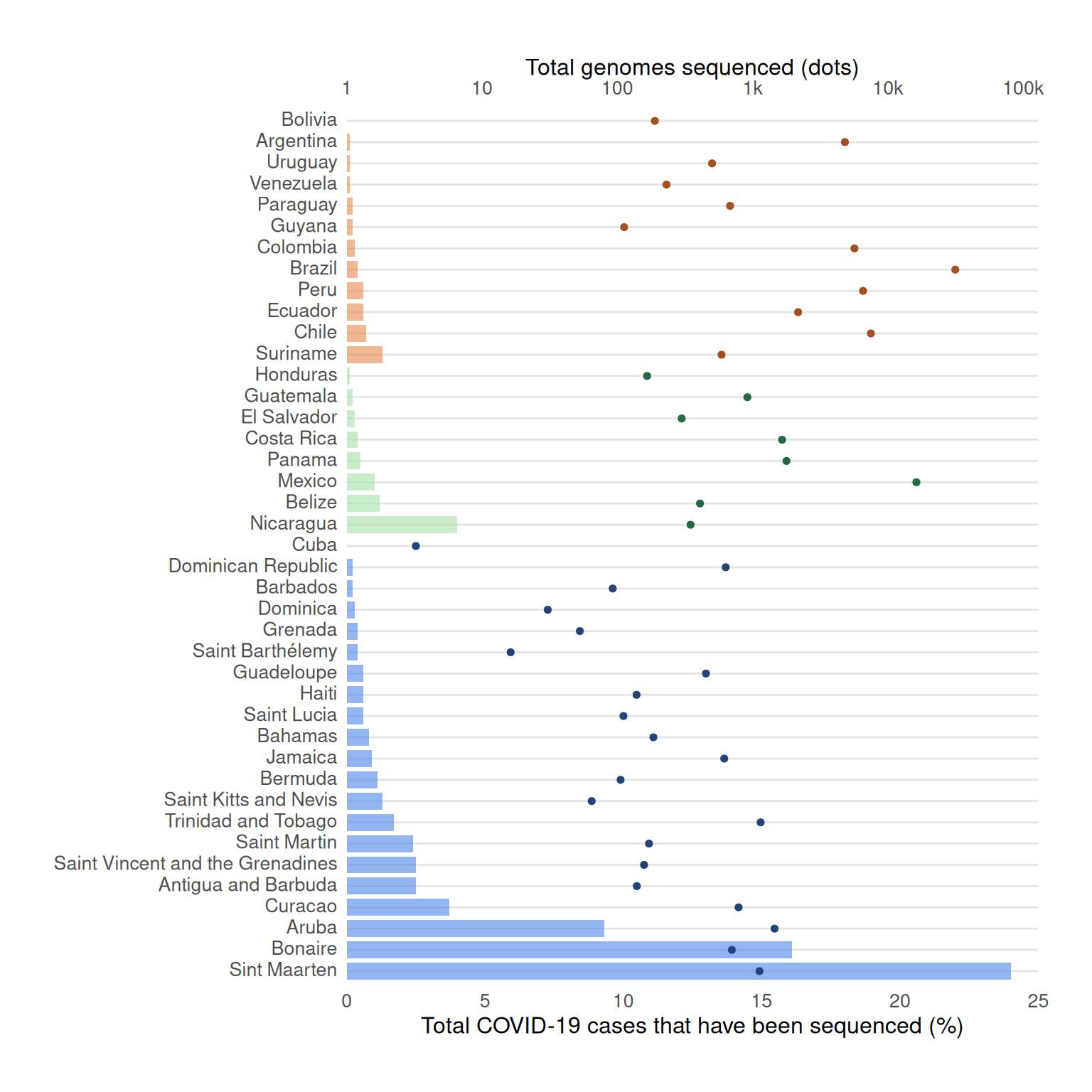

Alternative Graph 1

In this version of the graph, I have regrouped the countries by their respective regions: South America, North and Central America, and the Caribbean. Where there was previously too many colors I have now concentrated it to three colors- one for each region. By restructured the countries in this way and in descending order the readers focus should be pulled towards to the “Total COVID-19 cases that have been sequenced (%)” data. This allows a more organized way of interpreting the graph.

Define New Country order

This step redefines the countries in descending order by “Total COVID-19 cases that have been sequenced (%)”

country_order <- c(
  "Bolivia", "Argentina", "Uruguay", "Venezuela", "Paraguay", "Guyana",
  "Colombia", "Brazil", "Peru", "Ecuador", "Chile", "Suriname",
  "Honduras", "Guatemala", "El Salvador", "Costa Rica", "Panama",
  "Mexico", "Belize", "Nicaragua", "Cuba", "Dominican Republic",
  "Barbados", "Dominica", "Grenada", "Saint Barthélemy", "Guadeloupe",
  "Haiti", "Saint Lucia", "Bahamas", "Jamaica", "Bermuda",
  "Saint Kitts and Nevis", "Trinidad and Tobago", "Saint Martin",
  "Saint Vincent and the Grenadines", "Antigua and Barbuda",
  "Curacao", "Aruba", "Bonaire", "Sint Maarten"
)

Data Loading Preparation

covid_data <- read_csv("SARS-CoV-2.csv") %>%
  mutate(
    Country = factor(Country, levels = rev(country_order))
  ) %>%
  filter(!is.na(Country))

Transformation Function

This function transforms genome counts to a percentage scale, using a logarithmic transformation to handle wide ranges of data.

genome_to_pct <- function(x) {
  x_log <- log10(x)
  min_log <- log10(2)
  max_log <- log10(129677)
  scaled_value <- 2.5 + ((x_log - min_log) / (max_log - min_log)) * 19.5
  return(scaled_value)
}

breaks <- c(1, 10, 100, 1000, 10000, 100000)

Plotting the Graph

ggplot() +
  geom_col(
    data = covid_data,
    aes(x = Prop_sequenced_cases, y = Country, fill = Country),
    alpha = 0.6,
    width = 0.8
  ) +
  geom_point(
    data = covid_data,
    aes(x = genome_to_pct(Genomes), y = Country, color = Country),
    size = 1.3
  ) +
  scale_x_continuous(
    name = "Total COVID-19 cases that have been sequenced (%)",
    limits = c(0, 25),
    breaks = seq(0, 25, 5),
    expand = c(0, 0),
    sec.axis = sec_axis(
      trans = ~10^((. - 0) / 25 * (log10(129677) - log10(1)) + log10(1)),
      name = "Total genomes sequenced (dots)",
      breaks = breaks,
      labels = c("1", "10", "100", "1k", "10k", "100k")
    )
  ) +
  scale_fill_manual(values = c(
    "Argentina" = "#ea874b", "Bolivia" = "#ea874b", "Brazil" = "#ea874b",
    "Chile" = "#ea874b", "Colombia" = "#ea874b", "Ecuador" = "#ea874b",
    "Guyana" = "#ea874b", "Paraguay" = "#ea874b", "Peru" = "#ea874b",
    "Suriname" = "#ea874b", "Uruguay" = "#ea874b", "Venezuela" = "#ea874b",
    "Honduras" = "#a6e0a6", "Guatemala" = "#a6e0a6", "El Salvador" = "#a6e0a6",
    "Costa Rica" = "#a6e0a6", "Panama" = "#a6e0a6", "Belize" = "#a6e0a6",
    "Nicaragua" = "#a6e0a6", "Mexico" = "#a6e0a6", "Bahamas" = "#4b85ea",
    "Bermuda" = "#4b85ea", "Cuba" = "#4b85ea", "Dominican Republic" = "#4b85ea",
    "Haiti" = "#4b85ea", "Jamaica" = "#4b85ea", "Barbados" = "#4b85ea",
    "Dominica" = "#4b85ea", "Saint Barthélemy" = "#4b85ea", "Grenada" = "#4b85ea",
    "Saint Lucia" = "#4b85ea", "Guadeloupe" = "#4b85ea", "Saint Kitts and Nevis" = "#4b85ea",
    "Trinidad and Tobago" = "#4b85ea", "Saint Martin" = "#4b85ea",
    "Saint Vincent and the Grenadines" = "#4b85ea", "Antigua and Barbuda" = "#4b85ea",
    "Curacao" = "#4b85ea", "Aruba" = "#4b85ea", "Bonaire" = "#4b85ea",
    "Sint Maarten" = "#4b85ea"
  )) +
  scale_color_manual(values = c(
    "Argentina" = "#a4501e", "Bolivia" = "#a4501e", "Brazil" = "#a4501e",
    "Chile" = "#a4501e", "Colombia" = "#a4501e", "Ecuador" = "#a4501e",
    "Guyana" = "#a4501e", "Paraguay" = "#a4501e", "Peru" = "#a4501e",
    "Suriname" = "#a4501e", "Uruguay" = "#a4501e", "Venezuela" = "#a4501e",
    "Honduras" = "#236a42", "Guatemala" = "#236a42", "El Salvador" = "#236a42",
    "Costa Rica" = "#236a42", "Panama" = "#236a42", "Belize" = "#236a42",
    "Nicaragua" = "#236a42", "Mexico" = "#236a42", "Bahamas" = "#23447a",
    "Bermuda" = "#23447a", "Cuba" = "#23447a", "Dominican Republic" = "#23447a",
    "Haiti" = "#23447a", "Jamaica" = "#23447a", "Barbados" = "#23447a",
    "Dominica" = "#23447a", "Saint Barthélemy" = "#23447a", "Grenada" = "#23447a",
    "Saint Lucia" = "#23447a", "Guadeloupe" = "#23447a", "Saint Kitts and Nevis" = "#23447a",
    "Trinidad and Tobago" = "#23447a", "Saint Martin" = "#23447a",
    "Saint Vincent and the Grenadines" = "#23447a", "Antigua and Barbuda" = "#23447a",
    "Curacao" = "#23447a", "Aruba" = "#23447a", "Bonaire" = "#23447a",
    "Sint Maarten" = "#23447a"
  )) +
  labs(y = NULL) +
  theme_minimal() +
  theme(
    panel.grid.major.y = element_line(color = "gray90"),
    panel.grid.major.x = element_blank(),
    panel.grid.minor = element_blank(),
    axis.text.y = element_text(size = 10, hjust = 1),
    axis.text.x = element_text(size = 10),
    axis.text.x.sec = element_text(size = 10),
    axis.text = element_markdown(),
    axis.title.x = element_text(size = 12),
    legend.position = "none",  # No legend
    plot.margin = margin(1, 1, 1, 1, "cm")
  )

Alternative Graph 2

This second alternative of the graph keeps the countries grouped by their regions and their respective colors from the first alternative graph. However, they are now instead organized by “Total genomes sequenced (dots)” in ascending order. Again the purpose here is to draw the readers focus to the data provided by one of the x-axis, instead of spending time trying to decipher both x-axis at the same time. This allows a more structured way to understand the information being presented.

Define New Country order

This step redefines the countries in ascending order by “Total genomes sequenced (dots)”

country_order <- c(
  "Brazil", "Chile", "Peru", "Colombia", "Argentina", "Ecuador", "Paraguay",
  "Suriname", "Uruguay", "Venezuela", "Bolivia", "Guyana", "Mexico", "Panama",
  "Costa Rica", "Guatemala", "Belize", "Nicaragua", "El Salvador", "Honduras",
  "Aruba", "Trinidad and Tobago", "Sint Maarten", "Curacao", "Bonaire",
  "Dominican Republic", "Jamaica", "Guadeloupe", "Bahamas", "Saint Martin",
  "Saint Vincent and the Grenadines", "Antigua and Barbuda", "Haiti",
  "Saint Lucia", "Bermuda", "Barbados", "Saint Kitts and Nevis", "Grenada",
  "Dominica", "Saint Barthélemy", "Cuba"
)

Data Loading Preparation

covid_data <- read_csv("SARS-CoV-2.csv") %>%
  mutate(
    Country = factor(Country, levels = rev(country_order))
  ) %>%
  filter(!is.na(Country))

Transformation Function

This function transforms genome counts to a percentage scale, using a logarithmic transformation to handle wide ranges of data.

genome_to_pct <- function(x) {
  x_log <- log10(x)
  min_log <- log10(2)
  max_log <- log10(129677)
  scaled_value <- 2.5 + ((x_log - min_log) / (max_log - min_log)) * 19.5
  return(scaled_value)
}
breaks <- c(1, 10, 100, 1000, 10000, 100000)

Plotting the Graph

ggplot() +
  geom_col(
    data = covid_data,
    aes(x = Prop_sequenced_cases, y = Country, fill = Country),
    alpha = 0.6,
    width = 0.8
  ) +
  geom_point(
    data = covid_data,
    aes(x = genome_to_pct(Genomes), y = Country, color = Country),
    size = 1.3
  ) +
  scale_x_continuous(
    name = "Total COVID-19 cases that have been sequenced (%)",
    limits = c(0, 25),
    breaks = seq(0, 25, 5),
    expand = c(0, 0),
    sec.axis = sec_axis(
      trans = ~10^((. - 0) / 25 * (log10(129677) - log10(1)) + log10(1)),
      name = "Total genomes sequenced (dots)",
      breaks = breaks,
      labels = c("1", "10", "100", "1k", "10k", "100k")
    )
  ) +
  scale_fill_manual(values = c(
    "Brazil" = "#ea874b", "Chile" = "#ea874b", "Peru" = "#ea874b",
    "Colombia" = "#ea874b", "Argentina" = "#ea874b", "Ecuador" = "#ea874b",
    "Paraguay" = "#ea874b", "Suriname" = "#ea874b", "Uruguay" = "#ea874b",
    "Venezuela" = "#ea874b", "Bolivia" = "#ea874b", "Guyana" = "#ea874b",
    "Mexico" = "#a6e0a6", "Panama" = "#a6e0a6", "Costa Rica" = "#a6e0a6",
    "Guatemala" = "#a6e0a6", "Belize" = "#a6e0a6", "Nicaragua" = "#a6e0a6",
    "El Salvador" = "#a6e0a6", "Honduras" = "#a6e0a6", "Aruba" = "#4b85ea",
    "Trinidad and Tobago" = "#4b85ea", "Sint Maarten" = "#4b85ea",
    "Curacao" = "#4b85ea", "Bonaire" = "#4b85ea", "Dominican Republic" = "#4b85ea",
    "Jamaica" = "#4b85ea", "Guadeloupe" = "#4b85ea", "Bahamas" = "#4b85ea",
    "Saint Martin" = "#4b85ea", "Saint Vincent and the Grenadines" = "#4b85ea",
    "Antigua and Barbuda" = "#4b85ea", "Haiti" = "#4b85ea", "Saint Lucia" = "#4b85ea",
    "Bermuda" = "#4b85ea", "Barbados" = "#4b85ea", "Saint Kitts and Nevis" = "#4b85ea",
    "Grenada" = "#4b85ea", "Dominica" = "#4b85ea", "Saint Barthélemy" = "#4b85ea",
    "Cuba" = "#4b85ea"
  )) +
  scale_color_manual(values = c(
    "Brazil" = "#a4501e", "Chile" = "#a4501e", "Peru" = "#a4501e",
    "Colombia" = "#a4501e", "Argentina" = "#a4501e", "Ecuador" = "#a4501e",
    "Paraguay" = "#a4501e", "Suriname" = "#a4501e", "Uruguay" = "#a4501e",
    "Venezuela" = "#a4501e", "Bolivia" = "#a4501e", "Guyana" = "#a4501e",
    "Mexico" = "#236a42", "Panama" = "#236a42", "Costa Rica" = "#236a42",
    "Guatemala" = "#236a42", "Belize" = "#236a42", "Nicaragua" = "#236a42",
    "El Salvador" = "#236a42", "Honduras" = "#236a42", "Aruba" = "#23447a",
    "Trinidad and Tobago" = "#23447a", "Sint Maarten" = "#23447a",
    "Curacao" = "#23447a", "Bonaire" = "#23447a", "Dominican Republic" = "#23447a",
    "Jamaica" = "#23447a", "Guadeloupe" = "#23447a", "Bahamas" = "#23447a",
    "Saint Martin" = "#23447a", "Saint Vincent and the Grenadines" = "#23447a",
    "Antigua and Barbuda" = "#23447a", "Haiti" = "#23447a", "Saint Lucia" = "#23447a",
    "Bermuda" = "#23447a", "Barbados" = "#23447a", "Saint Kitts and Nevis" = "#23447a",
    "Grenada" = "#23447a", "Dominica" = "#23447a", "Saint Barthélemy" = "#23447a",
    "Cuba" = "#23447a"
  )) +
  labs(y = NULL) +
  theme_minimal() +
  theme(
    panel.grid.major.y = element_line(color = "gray90"),
    panel.grid.major.x = element_blank(),
    panel.grid.minor = element_blank(),
    axis.text.y = element_text(size = 10, hjust = 1),
    axis.text.x = element_text(size = 10),
    axis.text.x.sec = element_text(size = 10),
    axis.text = element_markdown(),
    axis.title.x = element_text(size = 12),
    legend.position = "none",  # No legend
    plot.margin = margin(1, 1, 1, 1, "cm")
  )

Interactive Graph

This interactive version of the graph provides a simpler interpretation of the graph. The list of countries is now on the x-axis and the y-axis scaled the “Number of Genomes Sequenced.” Since the focus of the paper is on genomes sequenced, it made sense to display this information first. Then when you hover over a countries bar, you get the more specific number for genomes sequenced and the proportion of sequenced cases.

Required Libraries

library(highcharter)
library(dplyr)

Define New Country order

This step defines a custom order for the countries in the visualization. The order is crucial for the graph’s readability

country_order <- c(
  "Brazil", "Chile", "Peru", "Colombia", "Argentina", "Ecuador", "Paraguay",
  "Suriname", "Uruguay", "Venezuela", "Bolivia", "Guyana", "Mexico", "Panama",
  "Costa Rica", "Guatemala", "Belize", "Nicaragua", "El Salvador", "Honduras",
  "Aruba", "Trinidad and Tobago", "Sint Maarten", "Curacao", "Bonaire",
  "Dominican Republic", "Jamaica", "Guadeloupe", "Bahamas", "Saint Martin",
  "Saint Vincent and the Grenadines", "Antigua and Barbuda", "Haiti",
  "Saint Lucia", "Bermuda", "Barbados", "Saint Kitts and Nevis", "Grenada",
  "Dominica", "Saint Barthélemy", "Cuba"
)

Data Loading Preparation

covid_data <- read_csv("SARS-CoV-2.csv") %>%
  mutate(Country = factor(Country, levels = country_order)) %>%
  arrange(Country)

Transformation Function

This function transforms genome counts to a percentage scale, using a logarithmic transformation to handle wide ranges of data.

Define custom colors for bars

bar_colors <- c(
  "Brazil" = "#ea874b", "Chile" = "#ea874b", "Peru" = "#ea874b",
  "Colombia" = "#ea874b", "Argentina" = "#ea874b", "Ecuador" = "#ea874b",
  "Paraguay" = "#ea874b", "Suriname" = "#ea874b", "Uruguay" = "#ea874b",
  "Venezuela" = "#ea874b", "Bolivia" = "#ea874b", "Guyana" = "#ea874b",
  "Mexico" = "#a6e0a6", "Panama" = "#a6e0a6", "Costa Rica" = "#a6e0a6",
  "Guatemala" = "#a6e0a6", "Belize" = "#a6e0a6", "Nicaragua" = "#a6e0a6",
  "El Salvador" = "#a6e0a6", "Honduras" = "#a6e0a6", "Aruba" = "#4b85ea",
  "Trinidad and Tobago" = "#4b85ea", "Sint Maarten" = "#4b85ea",
  "Curacao" = "#4b85ea", "Bonaire" = "#4b85ea", "Dominican Republic" = "#4b85ea",
  "Jamaica" = "#4b85ea", "Guadeloupe" = "#4b85ea", "Bahamas" = "#4b85ea",
  "Saint Martin" = "#4b85ea", "Saint Vincent and the Grenadines" = "#4b85ea",
  "Antigua and Barbuda" = "#4b85ea", "Haiti" = "#4b85ea", "Saint Lucia" = "#4b85ea",
  "Bermuda" = "#4b85ea", "Barbados" = "#4b85ea", "Saint Kitts and Nevis" = "#4b85ea",
  "Grenada" = "#4b85ea", "Dominica" = "#4b85ea", "Saint Barthélemy" = "#4b85ea",
  "Cuba" = "#4b85ea"
)

Map colors to data

covid_data <- covid_data %>%
  mutate(Color = bar_colors[as.character(Country)])

Plotting the Graph

hchart(covid_data, "column", hcaes(x = Country, y = Genomes, color = Color)) %>%
  hc_title(text = "Genomes Sequenced by Country") %>%
  hc_xAxis(
    title = list(text = "Country"),
    categories = country_order,
    gridLineWidth = 0
  ) %>%
  hc_yAxis(
    title = list(text = "Number of Genomes Sequenced"),
    type = "logarithmic",
    gridLineWidth = 1,
    gridLineDashStyle = "Solid"
  ) %>%
  hc_tooltip(
    pointFormat = paste(
      "Genomes sequenced: <b>{point.y}</b><br>",
      "Proportion sequenced cases: <b>{point.Prop_sequenced_cases}%</b>"
    )
  ) %>%
  hc_plotOptions(column = list(
    dataLabels = list(enabled = FALSE),
    showInLegend = FALSE
  )) %>%
  hc_add_theme(hc_theme_flat())

Dispersion patterns of SARS-CoV-2 variants Gamma, Lambda and Mu in Latin America and the Caribbean

Author

Affiliation

Published

Citation

Getting the Data

Recreating the Graph

Required Libraries

Country Order Definition

Data Loading Preparation

Transformation Function

Plotting the Graph

Alternative Graph 1

Define New Country order

Data Loading Preparation

Transformation Function

Plotting the Graph

Alternative Graph 2

Define New Country order

Data Loading Preparation

Transformation Function

Plotting the Graph

Interactive Graph

Required Libraries

Define New Country order

Data Loading Preparation

Transformation Function

Define custom colors for bars

Map colors to data

Plotting the Graph

Footnotes

Reuse

Citation
